Spectrum of Platinum homepage

Lines and intensities in the range 3630-3646 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3630.1180    27539.463     1500     Pt I     65308- 37769  N
  3630.9299    27533.305      480     Ne II
  3631.4632    27529.262              Fe I                   R
  3632.13      27524.2        140     Pt II    54373- 81897  KM
  3632.6804    27520.038     5500     Ne II                  G
  3632.9823    27517.751     1800 H   Pt II   101517- 73999  K
  3633.6637    27512.591   160000     Ne I                   G
  3634.0023    27510.027     2100     Pt II   105962- 78452  K
  3634.568     27505.75      1300     Ne II                  C
  3634.6874    27504.843              Pd I
  3636.01      27494.8        210     Pt I     26638- 54133  N
  3636.36      27492.2        110
  3636.5559    27490.711      750     Pt I     68006- 40516  N
  3636.9875    27487.449      250     Pt I     68275- 40787  N
  3637.1933    27485.893     4000     Pt I     64267- 36781  N
  3637.66      27482.4        140
  3638.7879    27473.848    34000     Pt I     13496- 40970  E
  3638.7879    27473.848    34000     Pt I     10116- 37590  E
  3639.54      27468.2        240
  3641.35      27454.5        150     Pt II   110146- 82692  K
  3643.1667    27440.828    53000     Pt I     64222- 36781  N
  3643.6290    27437.346    11000     Pt II   101199- 73761  32
  3643.9291    27435.087   170000     Ne II                  G
  3644.0403    27434.249     1000 P   Pt II   110258- 82824  K
  3644.4680    27431.030      730
  3644.8566    27428.105    39000     Ne II                  G
  3644.9425    27427.459      550 U
Character descriptor definitions (appear to right of intensity)
Code definitions

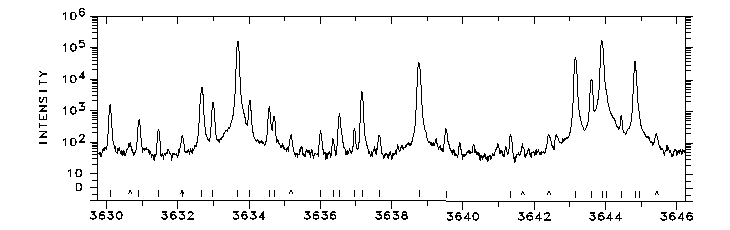

Photoelectric spectrum

3630-3646 Å

                      WAVELENGTH (ANGSTROMS) - AIR
