Spectrum of Platinum homepage

Lines and intensities in the range 3646-3662 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3647.8477    27405.616          W   Fe I                   A
  3647.8477    27405.616      520 W   Ne II                  A
  3650.7680    27383.695      610     Pt I     62705- 35321  N
  3651.266     27379.96       280     Ne II                  C
  3652.2552    27372.544     1700     Pt I     26638- 54011  E
  3652.812     27368.37       400     Ne II                  C
  3653.9828    27359.603     3600     Pt I     64141- 36781  E
  3655.95      27344.9        210     Pt II   105388- 78043  K
  3656.26      27342.6        120     Pt II   106434- 79092  K
  3656.651     27339.64       570     Ne II                  C
  3657.41      27334.0        330     Pt II   110158- 82824  K
  3658.01      27329.5                Rh I
  3659.4131    27319.004     3100     Pt I     21967- 49286  E
  3659.8921    27315.429     5200     Ne II                  G
  3661.25      27305.3        160     Pt I     68275- 40970  N
  3661.809     27301.13       650     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

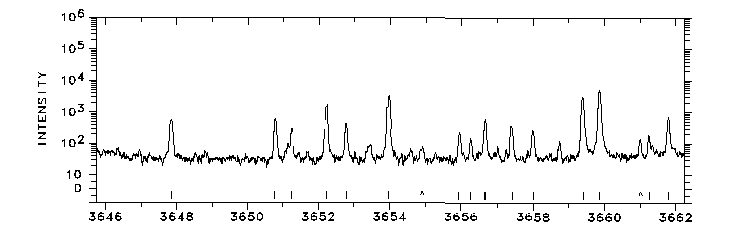

Photoelectric spectrum

3646-3662 Å

                      WAVELENGTH (ANGSTROMS) - AIR
