Spectrum of Platinum homepage

Lines and intensities in the range 3662-3678 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3662.8761    27293.177      460
  3663.0602    27291.805     2500 U   Pt I     13496- 40787  H
  3663.0952    27291.544     5000     Pt I     13496- 40787  H
  3663.1071    27291.455     4400 U   Pt I     13496- 40787  H
  3663.5492    27288.162     1100     Pt I     59908- 32620  E
  3663.9192    27285.407     4000 P   Pt II   110258- 82972  K
  3664.0740    27284.254   490000     Ne II                  G
  3665.1680    27276.110    21000     Pt II   101517- 74241  K
  3667.7969    27256.560     4100     Ne II                  G
  3668.0321    27254.813      190     Pt II    36484- 63738  17
  3668.3939    27252.125     4100     Pt I     59872- 32620  E
  3669.32      27245.2        230
  3669.83      27241.5        280
  3671.9990    27225.370    23000     Pt I     10116- 37342  E
  3672.5042    27221.625      420
  3672.8450    27219.099      760     Pt I     68006- 40787  N
  3674.0449    27210.210    18000 P   Pt I     10131- 37342  E
  3674.0738    27209.996     2500 U
  3674.8829    27204.005      500     Pt II    42031- 69235  AK
  3674.8829    27204.005      500     Pt I     60884- 33680  AH
  3674.9388    27203.591     2700     Pt I     60884- 33680  H
  3674.9872    27203.233      500     Pt I     60884- 33680  H
  3675.5230    27199.268     3300     Pt II   101199- 73999  AK
  3675.5230    27199.268     3300     Pt I     68169- 40970  AN
  3675.8238    27197.042     1900
  3676.226     27194.07      3000     Ne II                  C
  3676.804     27189.79       750     Ne II                  C
  3676.93      27188.9        270
  3677.090     27187.68       700     Ne II                  C
  3677.3943    27185.427      730     Pt II   110158- 82972  K
Character descriptor definitions (appear to right of intensity)
Code definitions

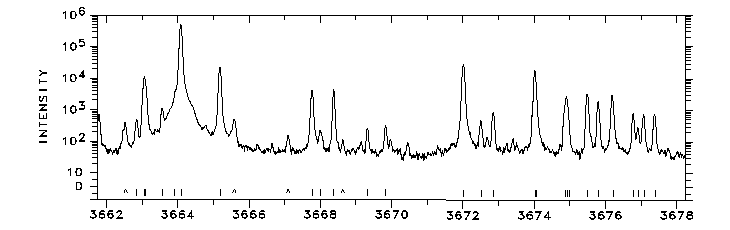

Photoelectric spectrum

3662-3678 Å

                      WAVELENGTH (ANGSTROMS) - AIR
