Lines and intensities in the range 3694-3710 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3694.2145    27061.652   910000     Ne II                  G
  3695.247     27054.09       860     Ne II                  C
  3696.6518    27043.810      430     Pt II   105086- 78043  K
  3697.1234    27040.360     5100     Ne II                  G
  3697.3787    27038.493      760
  3698.067     27033.46       420     Ne II                  C
  3698.9960    27026.671      920     Pt I     26638- 53665  N
  3699.54      27022.7        180
  3699.8649    27020.325      300 U   Pt I     13496- 40516  H
  3699.9126    27019.976    21000     Pt I     13496- 40516  H
  3699.9539    27019.675      350 U   Pt I     13496- 40516  H
  3700.1471    27018.264      450 W   Pt II    34647- 61665  16
  3700.219     27017.74      1900     Ne II                  C
  3700.9064    27012.721      270
  3701.2242    27010.401   110000     Ne I                   G
  3701.7769    27006.368    31000     Ne II                  G
  3702.2305    27003.060      400
  3705.5660    26978.754              Fe I                   R
  3705.744     26977.46      1200     Ne II                  C
  3706.5217    26971.798    22000     Pt I     59591- 32620  N
  3706.79      26969.8        230
  3707.386     26965.51      1400     Ne II                  C
  3707.998     26961.06      1700     Ne II                  C
  3708.4731    26957.606    15000     Pt II   101199- 74241  22
  3709.6222    26949.256   380000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

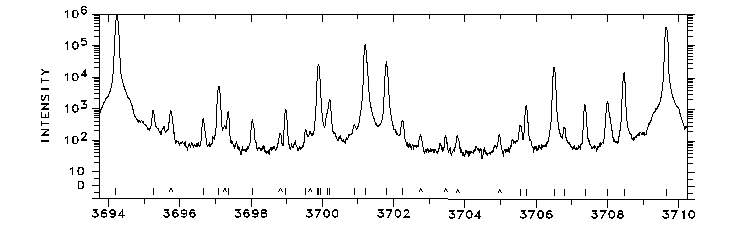

Photoelectric spectrum

3694-3710 Å

                      WAVELENGTH (ANGSTROMS) - AIR
