Spectrum of Platinum homepage

Lines and intensities in the range 3710-3726 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3713.0826    26924.141  1000000     Ne II                  G
  3715.458     26906.93       520     Ne II                  C
  3716.5006    26899.380     1500 C   Pt I     64668- 37769  N
  3716.6265    26898.469     7300     Pt II   101517- 74619  K
  3717.6207    26891.276      570
  3717.75      26890.3        170     Pt II   104410- 77519  KM
  3718.31      26886.3        150
  3719.9346    26874.549              Fe I                   R
  3720.48      26870.6        130     Pt II   105962- 79092  K
  3720.717     26868.90       250     Ne II                  C
  3721.819     26860.94      8700     Ne II                  C
  3722.53      26855.8        250
  3724.72      26840.0        150     Pt I     64182- 37342  N
  3725.2851    26835.951      340
  3725.85      26831.9        290     Pt I     18566- 45398  N
  3726.871     26824.53      6800 P   Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

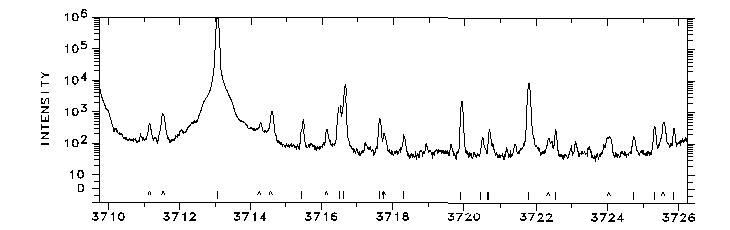

Photoelectric spectrum

3710-3726 Å

                      WAVELENGTH (ANGSTROMS) - AIR
