Spectrum of Platinum homepage

Lines and intensities in the range 3726-3742 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3726.871     26824.53      6800 P   Ne II                  C
  3727.1081    26822.825   550000     Ne II                  G
  3729.20      26807.8        480
  3730.07      26801.5        200
  3730.50      26798.4        410
  3730.981     26794.98       950     Ne II                  C
  3731.8721    26788.585      900 S   Pt I     64379- 37590  N
  3732.346     26785.18       350     Ne II                  C
  3732.777     26782.09       650     Ne II                  C
  3733.8023    26774.737      190
  3734.9388    26766.589   150000     Ne II                  G
  3735.4749    26762.749      420     Pt II   101517- 74754  K
  3735.5740    26762.039     1200 U   Pt I     60884- 34122  H
  3735.6027    26761.833     3500 P   Pt I     60884- 34122  H
  3735.6221    26761.694     1300 U   Pt I     60884- 34122  H
  3737.1313    26750.887              Fe I                   R
  3738.688     26739.75       150     Ne II                  C
  3738.78      26739.1        420
  3739.1037    26736.776     1100 S   Pt I     64505- 37769  E
  3740.5987    26726.090     3000     Ne II                  G
  3740.967     26723.46       130     Ne II                  C
  3741.1392    26722.229      800     Pt I     64312- 37590  N
Character descriptor definitions (appear to right of intensity)
Code definitions

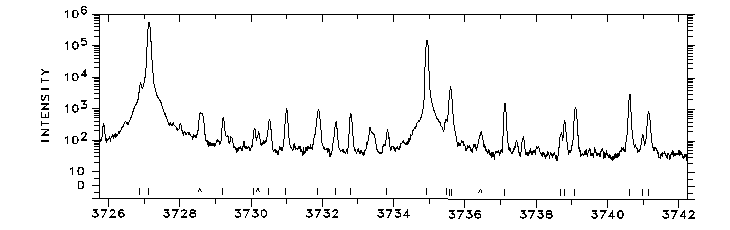

Photoelectric spectrum

3726-3742 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
