Spectrum of Platinum homepage

Lines and intensities in the range 3742-3758 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3742.4511    26712.862      160     Pt I     10131- 36844  E
  3742.67      26711.3        170
  3743.69      26704.0        100     Pt II   109527- 82824  K
  3744.6245    26697.358    11000     Ne II                  G
  3745.5613    26690.681              Fe I                   R
  3745.8995    26688.271              Fe I                   R
  3746.4653    26684.241      950     Ne II
  3747.53      26676.7        350     Pt I     64267- 37590  N
  3747.849     26674.39       450     Ne II                  C
  3748.2622    26671.449              Fe I                   R
  3748.7156    26668.223     1700     Pt I     60790- 34122  E
  3748.7469    26668.000      400 U
  3749.4853    26662.749              Fe I                   R
  3749.7263    26661.035     2900     Pt II    96614- 69953  18
  3750.588     26654.91       920 W   Ne II                  C
  3751.2459    26650.235    68000     Ne II                  G
  3751.6678    26647.238      310
  3751.7200    26646.868      250
  3751.9754    26645.054      300
  3752.1269    26643.978      140
  3752.6447    26640.301      300
  3753.6755    26632.986      310
  3753.7792    26632.250    35000     Ne II                  G
  3754.2143    26629.163    23000     Ne I                   G
  3754.2685    26628.779     1000 P
  3754.4527    26627.473     3400     Pt I     56784- 30156  E
  3754.92      26624.2        460
  3755.0849    26622.990      280
  3756.393     26613.72       410     Ne II                  C
  3756.88      26610.3        260
  3757.8940    26603.090      480
Character descriptor definitions (appear to right of intensity)
Code definitions

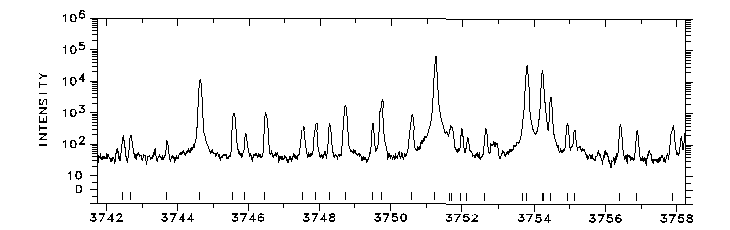

Photoelectric spectrum

3742-3758 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
