Spectrum of Platinum homepage

Lines and intensities in the range 3758-3774 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3758.12      26601.5        140
  3758.2330    26600.690              Fe I                   R
  3758.29      26600.3        380
  3758.97      26595.5        240
  3759.12      26594.4        290
  3760.51      26584.6        160
  3760.71      26583.2        220
  3761.1616    26579.978    12000     Pt II   101199- 74619  22
  3761.51      26577.5        270
  3762.40      26571.2        490     Pt I     65387- 38815  N
  3762.67      26569.3        160
  3763.16      26565.9         80
  3763.646     26562.43      1100     Ne II                  C
  3763.7891    26561.423              Fe I                   R
  3764.708     26554.94       840 H   Ne II                  C
  3764.9789    26553.029      200
  3766.260     26544.00    260000     Ne II                  C
  3766.4078    26542.956     2500 U
  3766.810     26540.12       390     Ne II                  C
  3767.4986    26535.271      140     Pt II   109507- 82972  K
  3767.6446    26534.242      150
  3767.6959    26533.881      120
  3768.1727    26530.524      270
  3768.29      26529.7        340
  3768.4048    26528.890      610 C   Pt II    24879- 51408  12
  3768.7573    26526.409      430 W
  3769.8806    26518.505      890     Pt I     60640- 34122  E
  3770.27      26515.8        150     Pt II   116689- 90173  K
  3770.54      26513.9        150
  3770.9691    26510.851      220     Pt II    37877- 64388  36
  3771.6504    26506.062      900     Ne III                 L
  3771.7806    26505.147      430
  3772.10      26502.9        150
Character descriptor definitions (appear to right of intensity)
Code definitions

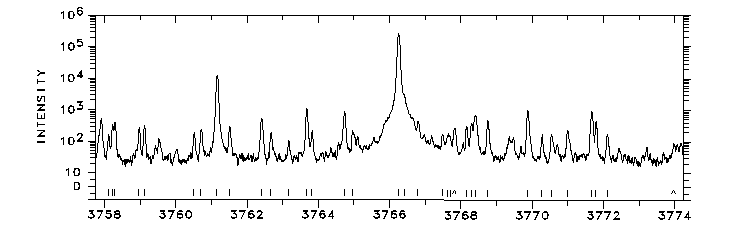

Photoelectric spectrum

3758-3774 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
