Lines and intensities in the range 3774-3790 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3774.06      26489.1         60
  3774.17      26488.4         66
  3774.73      26484.4        200
  3775.7464    26477.308      430
  3775.86      26476.5        250
  3776.4251    26472.550     2500     Pt I     68275- 41802  N
  3777.1359    26467.568   290000     Ne II                  G
  3779.1920    26453.169     1800     Pt II   101199- 74745  22
  3780.0762    26446.981      450
  3782.38      26430.9         83     Ne III                 L
  3782.65      26429.0         85
  3783.88      26420.4        130     Ne III                 L
  3784.7698    26414.184      410
  3784.9106    26413.201     1800 S   Pt I     64182- 37769  N
  3785.19      26411.3        100
  3786.35      26403.2        200     Ne III                 L
  3789.5705    26380.723      640     Pt I     26638- 53019  E
  3789.8282    26378.930      420
Character descriptor definitions (appear to right of intensity)
Code definitions

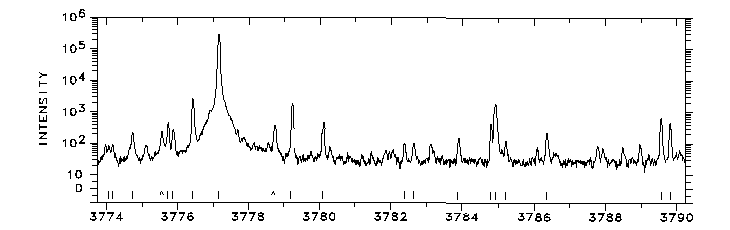

Photoelectric spectrum

3774-3790 Å

                      WAVELENGTH (ANGSTROMS) - AIR
